Auxiliary Fuel Tanks
The new name in providing state of the art auxiliary fuel tanks for transport category aircraft
Improving the range and mission capability of your aircraft

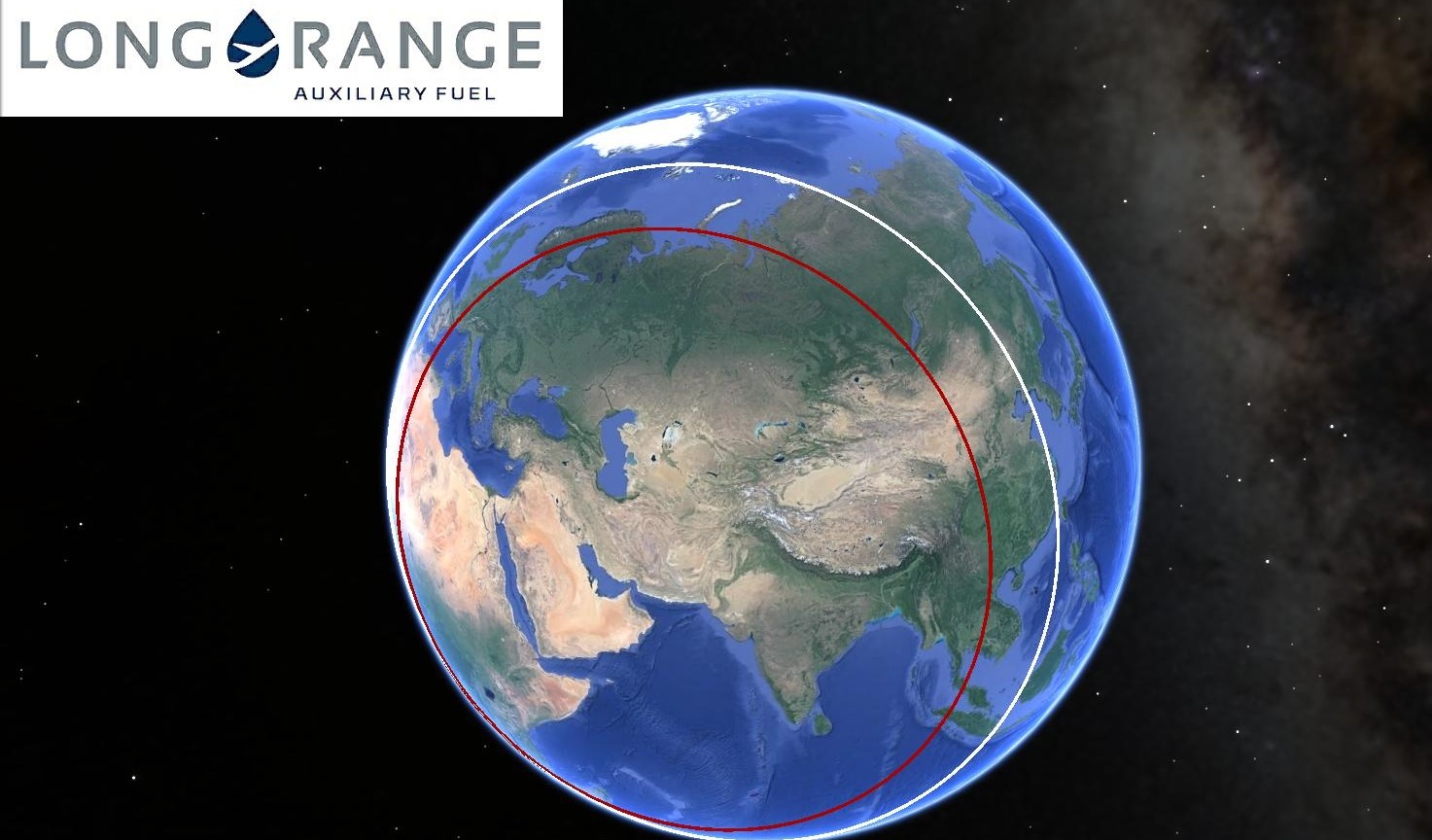

Note: Range rings based on a B737-500 aircraft standard, no aux tanks (red) and aircraft equipped with max aux tanks (white).
Just The Facts
Available for transport category aircraft
Currently, kits available for the B737 series aircraft
Installation fully supported at an MRO of your choice

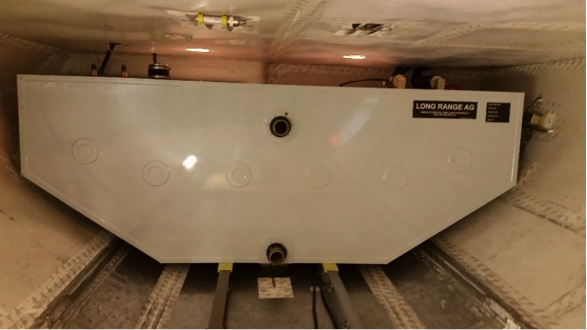

Tanks mounted in the aft and/or forward cargo bay

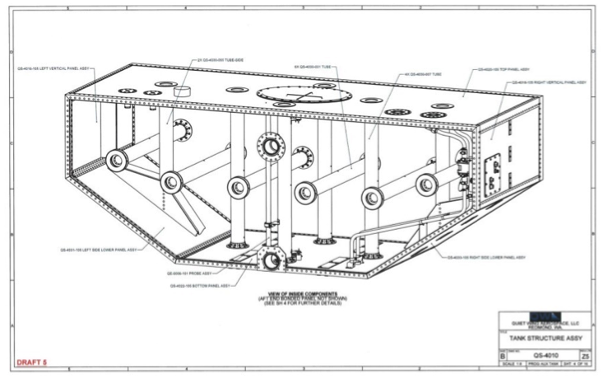

Each system consists of a Master tank and slave configuration
Only the master tank is a “hard installation”
Master tank contains all fuel transfer, management and quantity indicating systems
Slave tanks can be added or removed on the line within a few hours. No shop visit required.
Capacity:
Master tank = 449 US gallons / 3,008 Lb. / 1,364 kg / 1.36 tons
Slave aft = 359 US gallons / 2,405 Lb. / 1,090 kg / 1.09 tons
Slave fwd = 419 US gallons / 2,807 Lb. / 1,273 kg / 1.27 tons
Master tank = 449 US gallons / 3,008 Lb. / 1,364 kg / 1.36 tons
Slave aft = 359 US gallons / 2,405 Lb. / 1,090 kg / 1.09 tons
Slave fwd = 419 US gallons / 2,807 Lb. / 1,273 kg / 1.27 tons
Approximate aircraft down time for kit installation is 45 days
Master tank kit comes complete with ability to add in slave tanks at a later time
The Long Range™ system allows maximum flexibility in tank configurations as each slave tank is an LRU – Line Replaceable Unit.
In a matter of hours, tanks can be removed to expand the cargo volume or added to extend the aircraft range.
No MRO visit required
No cargo door removal required
No cargo floor obstructions with tanks removed
For a proposal please contact us
